Moho Nord, Landfall buoys for Technip

 In January 2015, Resinex supplied to Technip France 152 floats, specifically designed and produced in order to accelerate and optimize  the beach pool operations of the 16″ export flowline in the Moho North Field in the Congolese offshore.

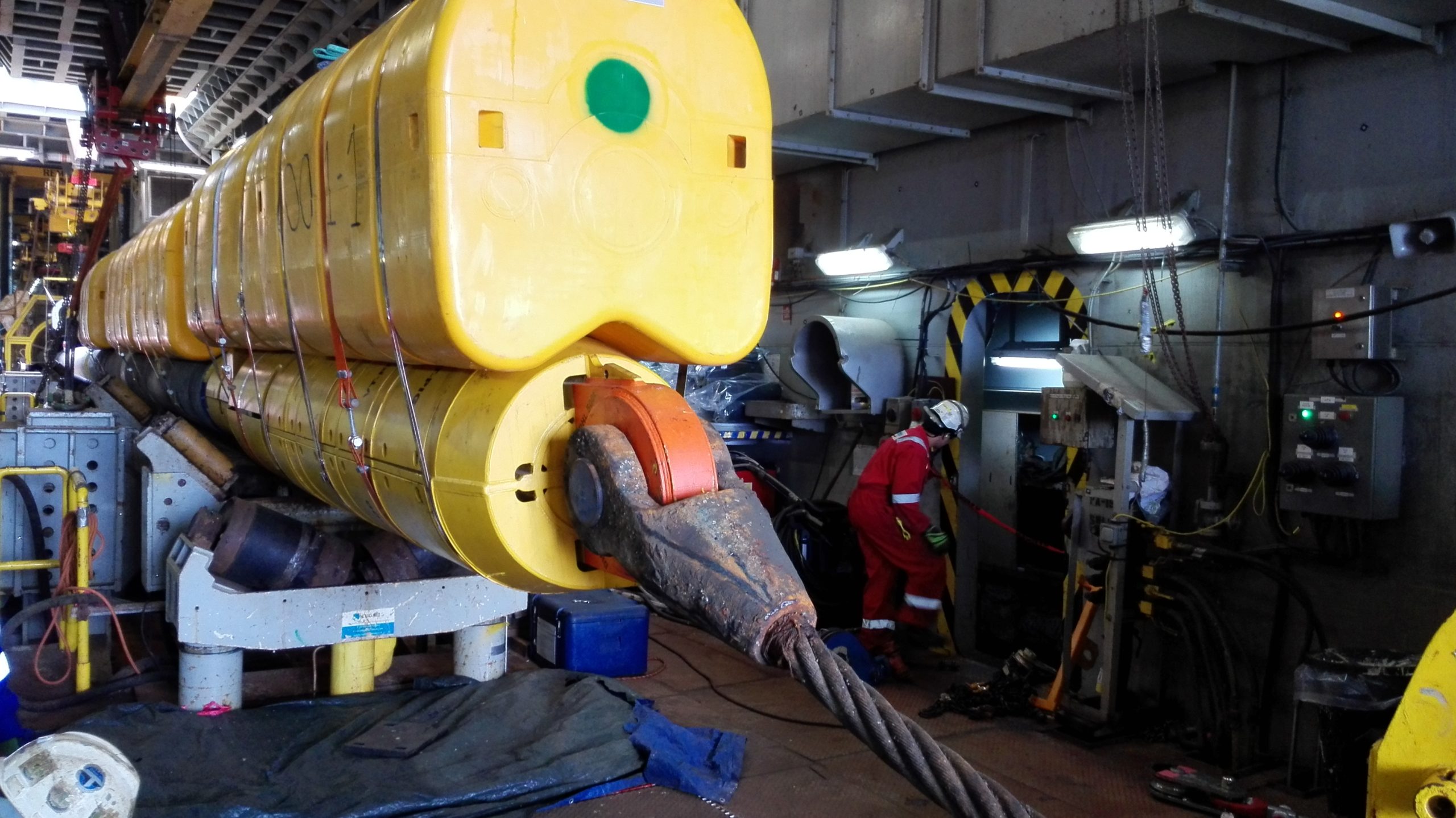

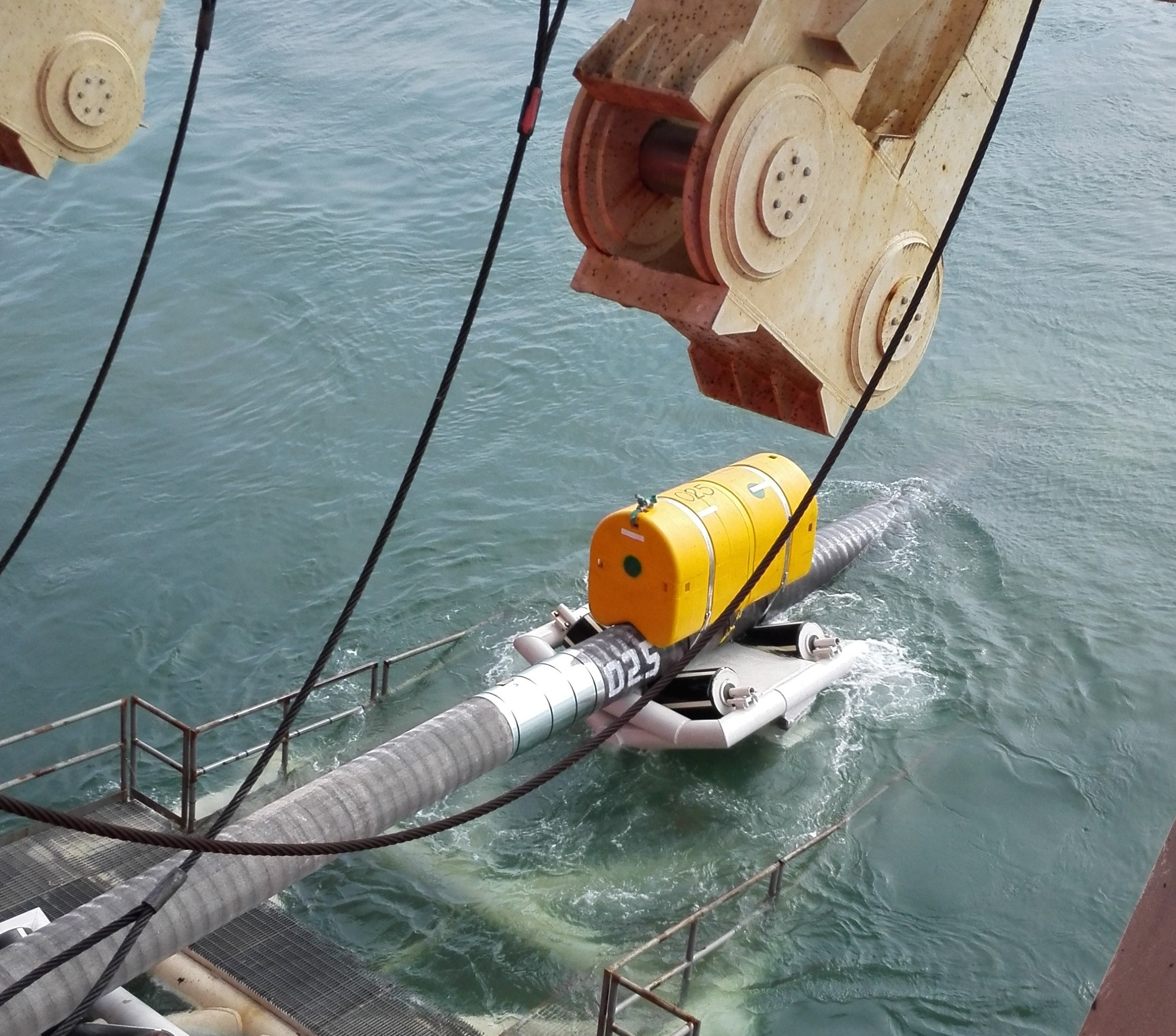

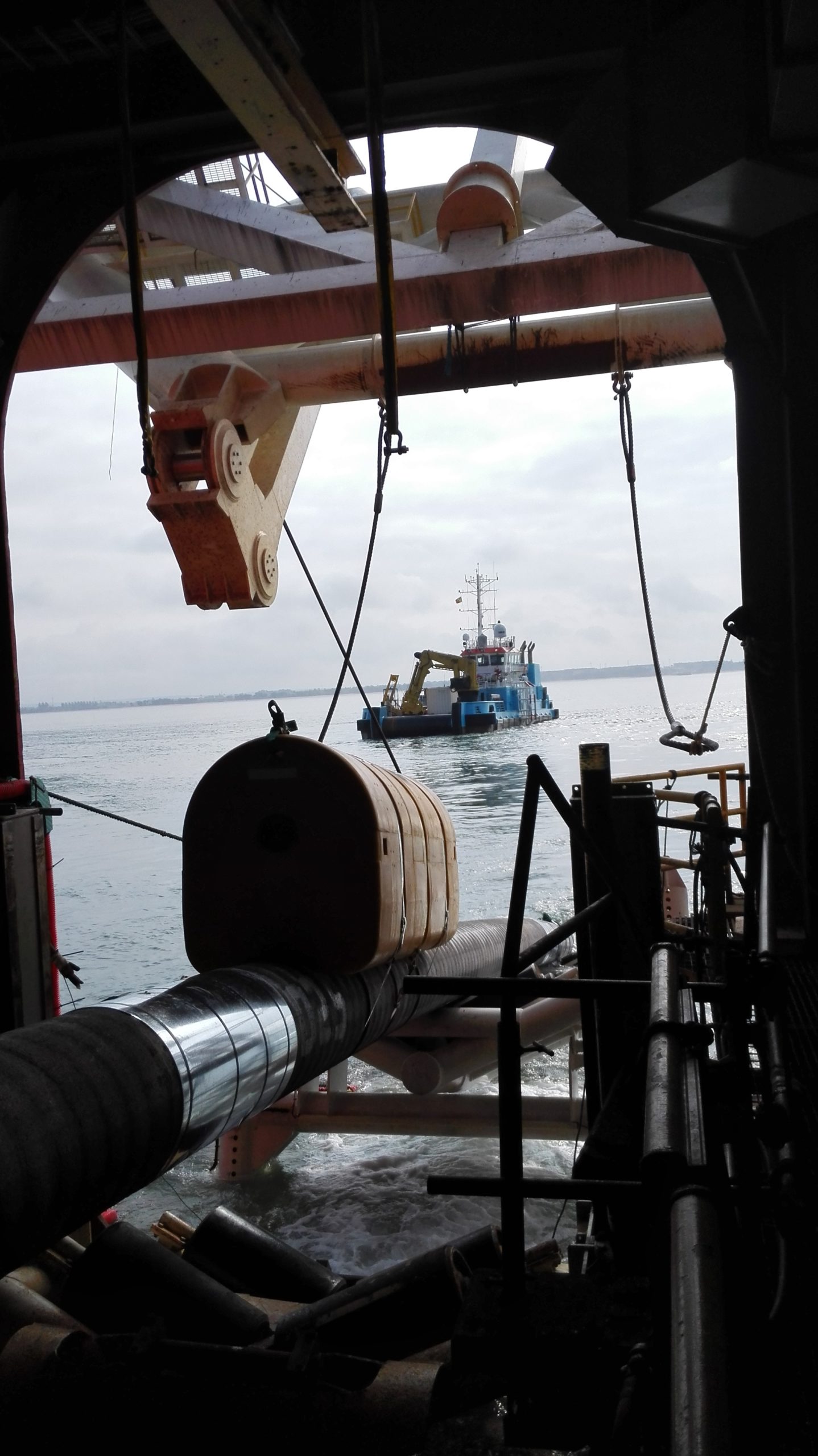

The floats, 65 pcs with a net buoyancy of 2.5 T and 87 pcs with a net buoyancy of 2 T, shall contribute to reduce the pulling force during flowline installation. Maximum operational depth is 20 metres. Besides the floats, Resinex also provided 304 fastening sets and 152 release systems of the floats from the pipeline.
The test package required by Technip was intensive. Hydrostatic tests, fit up tests (on the pipe), release tests (from the pipe) and impact tests, all successfully performed at Resinex Marine Research Centre in Adro (BS).

Impact Test Float

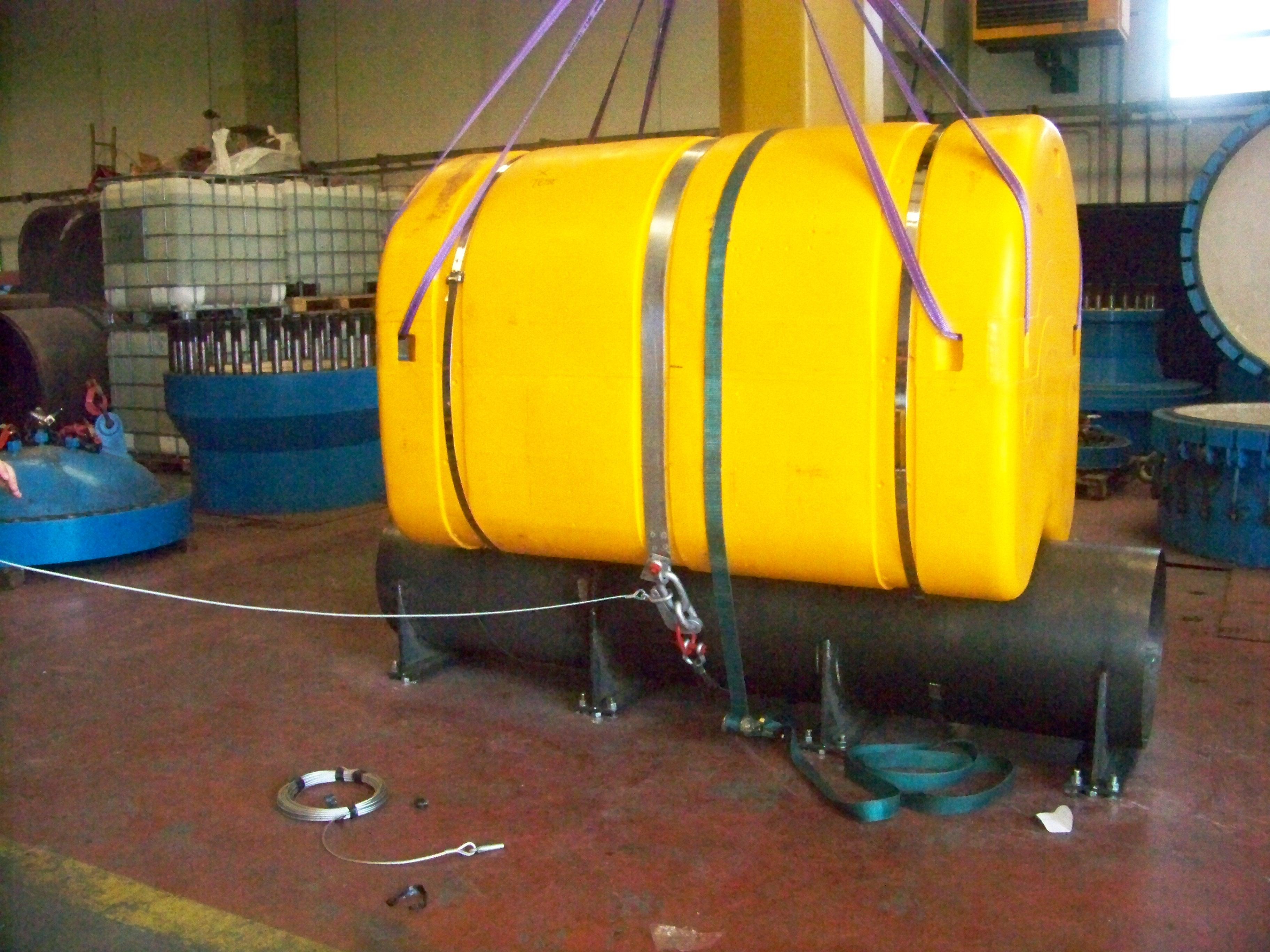

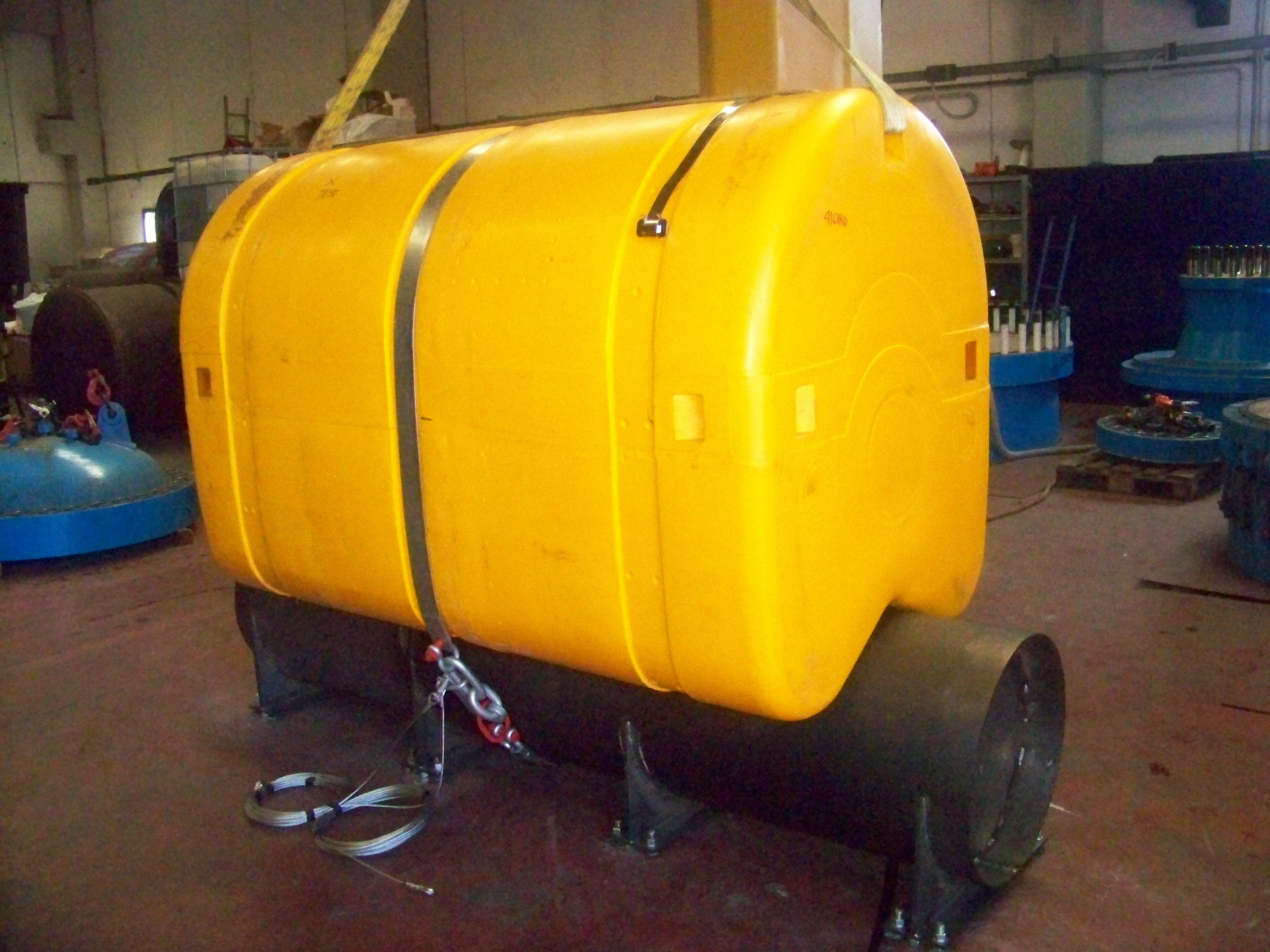

Fit up Test floating

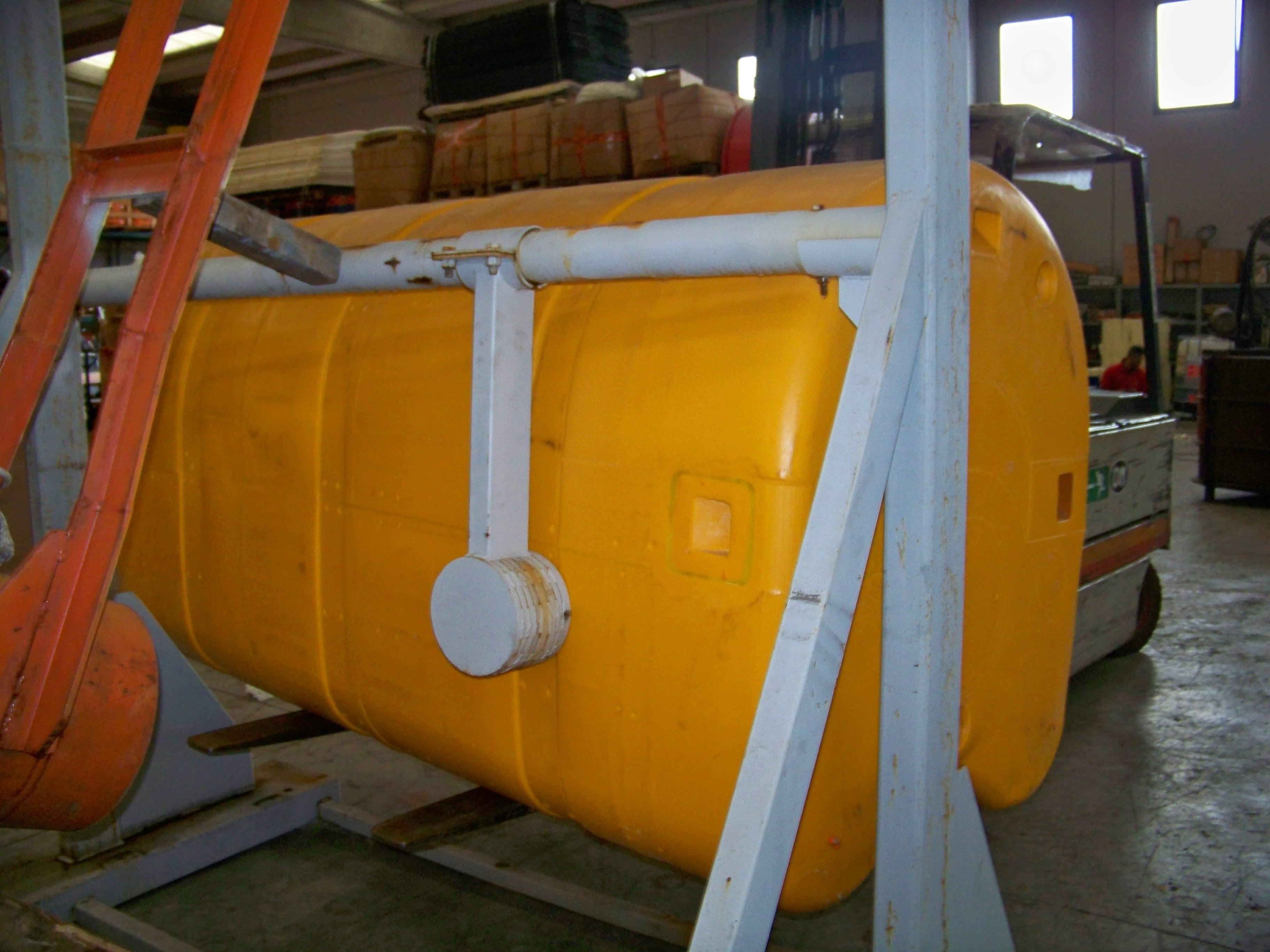

Floating Release Test

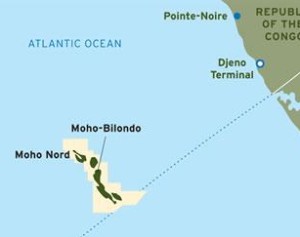

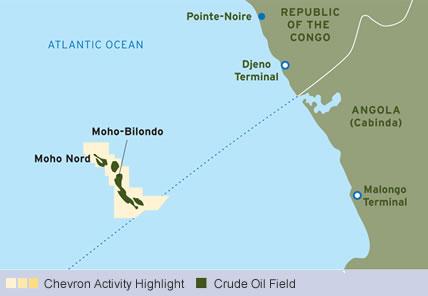

The $10bn Moho Nord Subsea project is located around 75 km off the coast of Pointe Noire  in the Republic of Congo.
It is the first deepwater offshore project in Congo at water depths ranging between 650 and 1100 m. Moho Nord is the latest project being developed in the Moho-Bilondo License which is owned 53.5% by its operator  Total E&P Congo, a subsidiary of Total.  Chevron and the Congolese state-owned oil company SNPC hold 31.5% and 15% interest respectively in the licence area. In the field, a new Floating Production Unit (FPU) will be installed.  This FPU will have a capacity to process 100.000 barrels of oil or equivalent per day. FPU output will be sent to the onshore base of Djeno through a pipeline.
The final configuration will have 50 subsea structures, 230 km of rigid pipeline and 23 km of flexible pipeline. For the installation, Technip will use its own vessel G1200. Installation operations are scheduled for November 2015.
